M10 — Robust
The M10 platform is designed for medium-tension products that require a more solid structure, firmer operating feel, and greater confidence in repeated use.
REF: ETIE 0629 product workbook · All dims mm

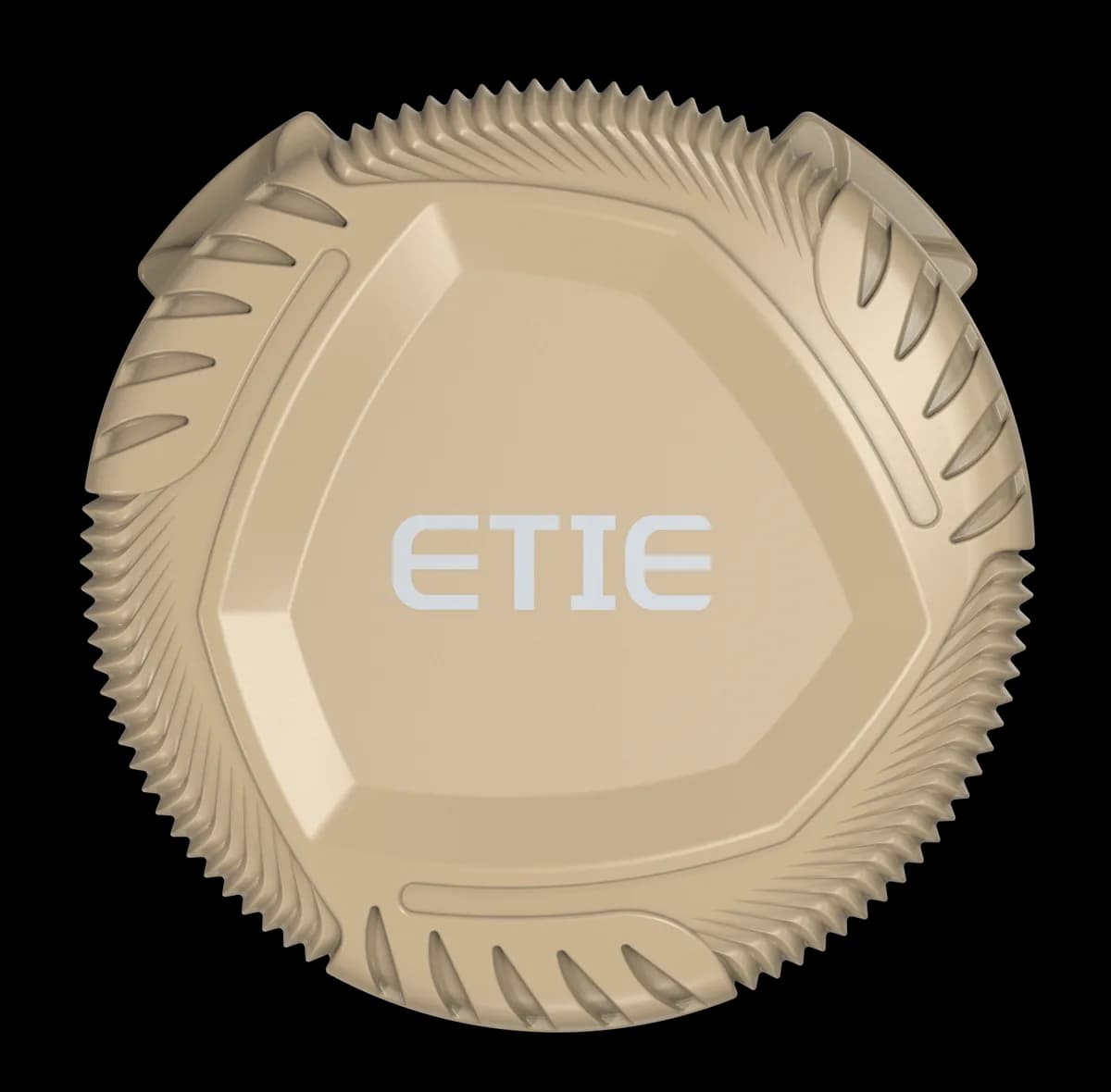

M10 variants and colourways.
Select a variant, choose a colour, then use the arrows to view detail shots. Representative renders — final finish varies by program.
1 / 2Sand
3 colours · 2 views
Turn, adjust, release.
M10 keeps the direct turn-tighten and turn-back-release workflow while increasing the platform diameter and tensile-load direction for more demanding product structures.
- Turn for tighten
- Turn back for release
Tested to ETIE standards.
Shared performance standards across ETIE dials, laces, and webbing.
- ≥ 3.5Plastic parts
- ≥ 3.5Webbing
- ≥ 4TX lace
- ≥ 3.5Webbing
- ≥ 4TX lace
- 333 N (34 kgf · 74.9 lbf)TX1 lace
- 441.5 N (45 kgf · 99.2 lbf)TX2 lace
- 200 N (20.4 kgf · 45 lbf)CS1 lace
- 411 N (42 kgf · 92 lbf)CS2 lace
- 637 N (65 kgf · 143 lbf)CS4 lace
- 196 N (20 kgf · 44.1 lbf)Webbing
Platform breakdown.
- 1
Robust dial shell
Larger 34.0–34.4 mm platform diameter
- 2
Higher-support spool
Cord take-up for medium-tension load paths
- 3
Ratchet interface
Turn-tighten control with 2-click CCW release
- 4
Expanded lace options
CS Ø0.8–1.0 mm and TX Ø1.0–1.5 mm compatibility
- 5
Material set
PC and TPE core structure
- 6
Demanding-use fit
Designed around firmer feedback and repeated use
Match the platform to the product.
Share the product type, lace path, target feel, and expected use condition. ETIE will provide the relevant detailed specification for review and sampling.
