L10 — Balanced

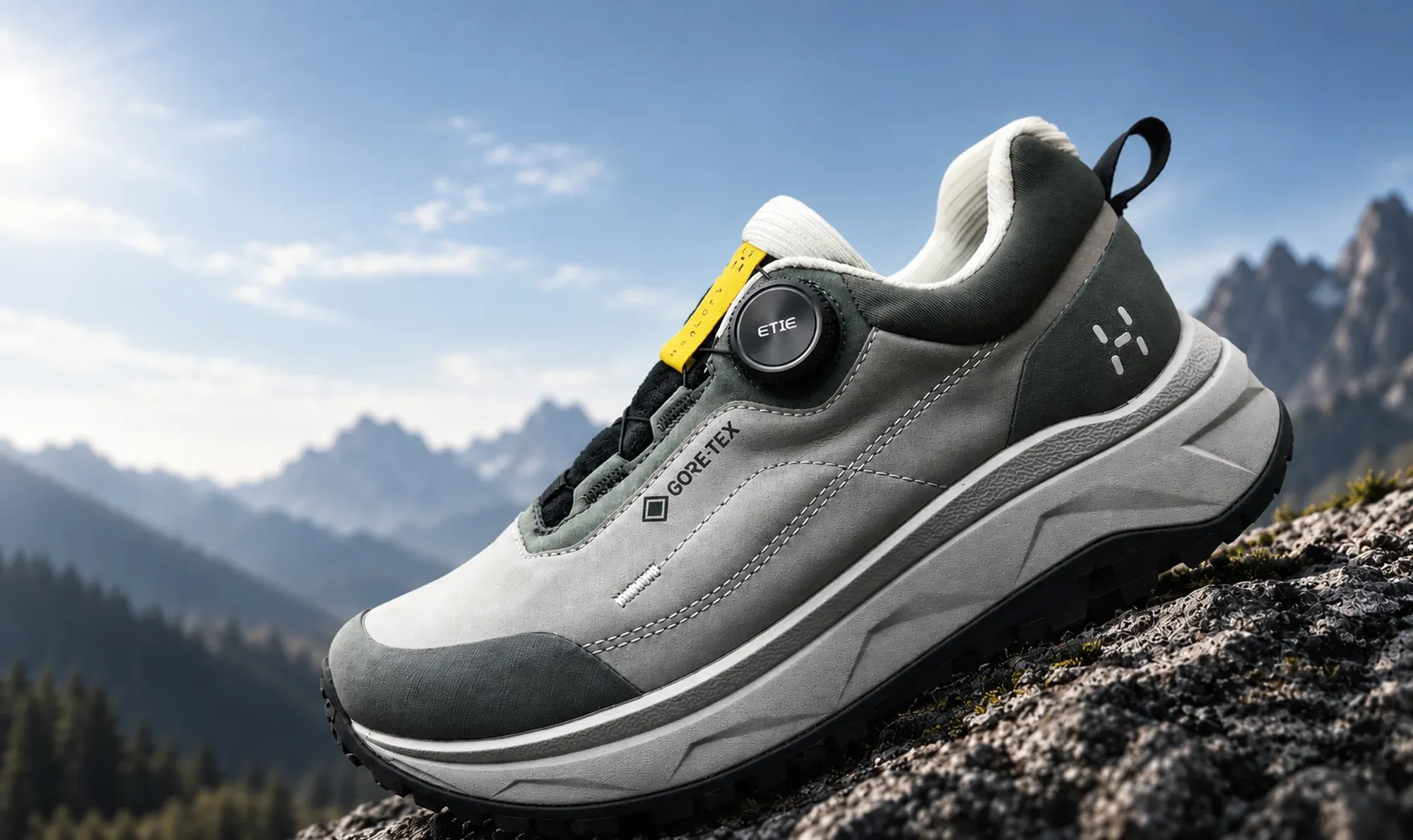

The L10 platform is built for products that need a stable, well-balanced dial solution for low-tension applications. It brings together clear operation, dependable closure, and practical integration across broad product programs.
REF: ETIE 0629 product workbook · All dims mm

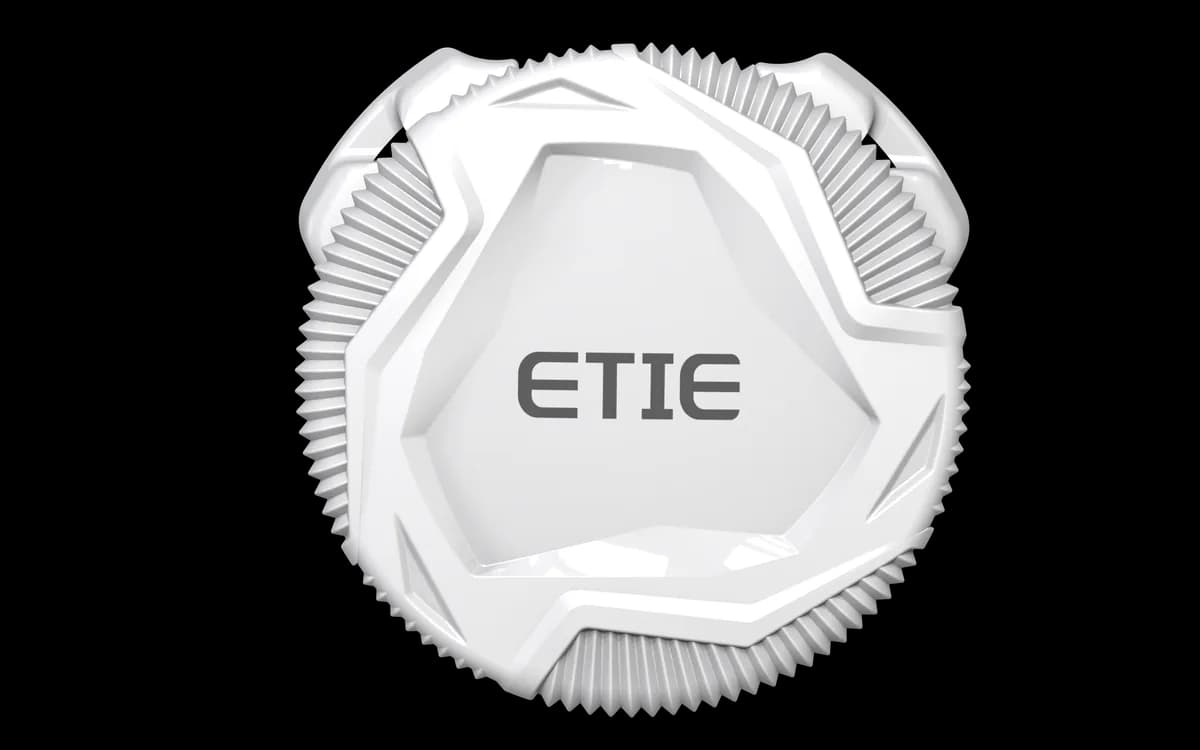

L10 variants and colourways.
Select a variant, choose a colour, then use the arrows to view detail shots. Representative renders — final finish varies by program.
1 / 2White
2 colours · 2 views
Turn, adjust, release.
L10 is a straightforward two-action platform: turn to tighten, then turn back through the release direction when the user needs to loosen or release the fit.
- Turn for tighten
- Turn back for release
Tested to ETIE standards.
Shared performance standards across ETIE dials, laces, and webbing.
- ≥ 3.5Plastic parts
- ≥ 3.5Webbing
- ≥ 4TX lace
- ≥ 3.5Webbing
- ≥ 4TX lace
- 333 N (34 kgf · 74.9 lbf)TX1 lace
- 441.5 N (45 kgf · 99.2 lbf)TX2 lace
- 200 N (20.4 kgf · 45 lbf)CS1 lace
- 411 N (42 kgf · 92 lbf)CS2 lace
- 637 N (65 kgf · 143 lbf)CS4 lace
- 196 N (20 kgf · 44.1 lbf)Webbing
Platform breakdown.
- 1
Balanced dial shell
Stable hand feel with broad category fit
- 2
Spool drum
Cord take-up for low-tension closure paths
- 3
Ratchet interface
Turn-tighten control with 2-click CCW release
- 4
Cord routing
CS Ø0.8 mm or TX Ø1.0 mm lace paths
- 5
Material set
PC, TPE, and aluminum core structure
- 6
Integration tolerance
±0.2 mm unless otherwise noted
Match the platform to the product.
Share the product type, lace path, target feel, and expected use condition. ETIE will provide the relevant detailed specification for review and sampling.
